ELECTRIC SCOOTER CONTROL BOXES BELOW SHOW THE TOTAL PRICE WITH SHIPPING
spacer

X-TREME X-10 100 Watt Control Box (ver 2) - $24.95
with free USA shipping.

OEM Part for the X-10 Scooter. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
2 LEFT

Wiring diagram

X-10 CONTROL BOX $24.95
with free USA shipping




Control Box For Vapor Scooter $19.95
with free USA shipping

Replacement control box using the same small pin connectors for Vapor scooters and others of the same type. Plug in and go. The Vapor may also be called Tornado and other names. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect. Wiring diagram
4 LEFT
Pin ID Picture of Original Vapor Controller.

VAPOR SUB CONTROL BOX $19.95
with free USA shipping




30 AMP 24 VOLT CONTROLLER for Motors up to 250/300 WATT - $14.95
with free USA shipping

LB27, 250/300 Watt or less Scooter Replacement at 10 normal amps to 30 amps peak. 3.25"L X 2.25"W X 1.35"H. Small size for tight spot location. 20.5 volt under voltage protection extends battery life. Harness wiring supports key switch, brake indicator, power indicator, charger connector, 3 wire throttle, brake lever cutout switch cuts battery output, motor, and battery. Some wire splicing may be necessary in some applications. Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT
Wiring connection

LB27 CONTROL BOX $14.95
with free USA shipping



RAZOR E1/125(V10+)/150/175/ESPARK CONTROL MODULE - $24.95
with free USA shipping

RAZOR E1/125(V10+)/150/175/ESPARK CONTROL MODULE Control Box without Go Button circuit (No Longer Available): may work on the Razor E100 and E125 (version 1 WITHOUT the green "Go" button only) with modifications. May replace the control module for the following models (with Wire/Plug modifications): Razor E100 & E125 (version 1 only). If ANY of the following apply to your E100, this controller without the Go Button is NOT compatible with your scooter: Your E100/E125 is chain driven and has a twist grip throttle OR Your E100/E125 is manufactured by JD. JD scooter barcodes start with "JD" or "30". OR Your Razor E100/E125 scooter has an external green "Go" button.

Razor E100/E125/E150 Control Module with 7 connectors (Available). Fits the following CHAIN driven models: E100: V10+, E125: V10+, E150: V1+.
**Note: Model versions can be determined based on your 8-digit product ID code. The product ID code can be found on the battery cover and/or on the bottom of the frame. The last two digits are the version number (e.g. "01"=version 1, "02"=version 2, etc.)
Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.

1 LEFT

RAZOR E1/125(V10+)/150/175/ESPARK CONTROL MODULE $24.95
with free USA shipping


spacer

30 AMP 24 CONTROLLER UP TO 500 WATT - $34.95
with free USA shipping


JC-116, 24volt, 200/250 or 500 Watt or less Scooter Replacement at 30 amps. Small size for tight spot location, 3.25L, 2.5W, 1.25H. Mounting bracket along back edge. Current limiting avoids damage to the motor and controller. Under voltage protection extends battery life. 8 connector harness wiring supports key switch, battery capacity, charger connector, 3 wire throttle (this is one of the few controllers with a three pin connector for the throttle), brake lever cutout switch cuts battery output, stop light, motor, and battery. Some wire splicing may be necessary in some applications. Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT
Wiring connection

JC116 CONTROL BOX $34.95
WITH FREE USA SHIPPING

30 AMP 24 VOLT CONTROLLER for Motors 350-750 WATT

$34.95
with free USA shipping

LBD14, 350-750 Watts, one of the best that has been around the longest, 10.5 normal amps to peak 30 amps. 3.5"L X 2.75"W X 1.5"H. Small size for tight spot location. Seven connectors. Current limiting avoids damage to the motor and controller. Under voltage protection extends battery life. Over speed prevention while charging (renders the throttle temporarily inoperable to prevent mistaken manipulation). 8 wire harness supports key switch, brake signal, power indicator, charger connector, 3 wire throttle, brake lever cutout switch cuts battery output, motor, and battery. Some wire splicing may be necessary in some applications. Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT
Wiring connection




LBD14 CONTROL BOX $34.95
with free USA shipping


spacer

30 AMP 500 WATT 24 VOLT HEAVY DUTY CONTROLLER - $44.95
with free USA shipping

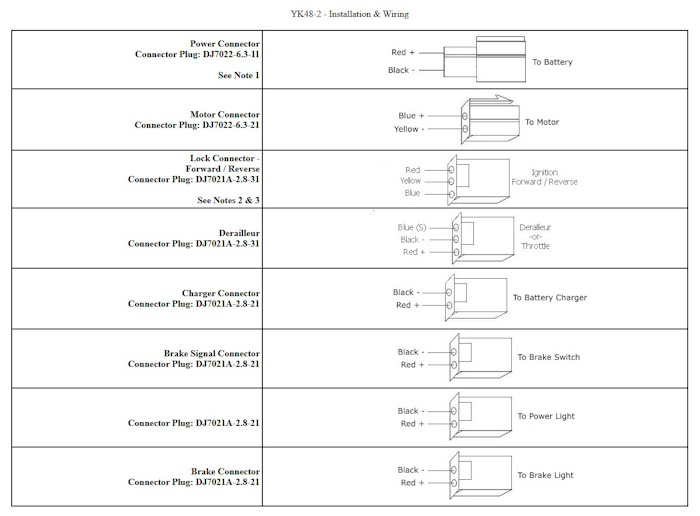

(9.8 cm x 6.9 cm x 3.8 cm). YK48-2. This 30 amp controller is a replacement for electric Scooters using up to 500 watt 24 volt motors. Undervoltage protected (20.5 volts). Just connect two wires (usually red and either blue or green) to motor, 3 wire connector for hall effect throttle, and red and black wires to 24 volt battery set through a heavy duty switch or relay in the black wire part of the circuit for high quality and endurance you need. Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT
Specifications and Wiring diagram

YK42-2 CONTROL BOX $44.95
with free USA shipping


spacer

30 AMP 500 WATT 24 VOLT HEAVY DUTY CONTROLLER - $74.95
with free USA shipping

(5L X 3.5H X 2H). YK42-2. This 30 amp controller is a replacement for electric Scooters using up to 500 watt 24 volt motors. Undervoltage protected (20.5 volts). Just connect two wires (usually red and either blue or green) to motor, 3 wire connector for hall effect throttle, and red and black wires to 24 volt battery set through a heavy duty switch or relay in the black wire part of the circuit for high quality and endurance you need. Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
2 LEFT
Specifications and Wiring diagram

YK42-2 CONTROL BOX $74.95
with free USA shipping


spacer
spacer

1000 Watt 36 Volt 40 Amp Controller for up to 1000 Watt 36 Volt Motors $54.95
with free USA shipping

CT-660B9. This controller has 7 connectors. Rated Voltage 36 Volts. Max Current 40 Amps. Usable Motors: 1000 Watts or less. Diminsions: 5"L X 3"W X 1.5"H. Rated Voltage: 36 Volts, Rated Motors to 1000 watts, Rated Current to 40 amps, Conversion Efficiency: 95%, Under voltage protection: 31.5 volts, 6 wire connector for throttle/brake lever/speed indicator, Brake Light, Power Indicator, Charger Connector, Lock/Switch connector, Motor and Battery connectors. Current Limiting prevents motor current from exceeding the specified value and avoids damage to the motor and control box due to over current conditions. Under voltage protection when the battery voltage falls to specified value, cutting battery output and preventing over discharge which extends battery life. Over speed prevention while charging renders the throttle temporarily inoperable and prevents mistaken operation. Power cut-off during braking. Simple connector plugs use or splice of harness wires to existing scooter wiring from control box or to components.
Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
2 LEFT
Wiring Connection

CT-660B9 CONTROL BOX $54.95
with free USA shipping

spacer

36 Volt 33 Amp Controller for up to 1000 Watt Motors $19.95

with free USA shipping

36 Volt for up to 1000 Watt or less brush type motors, 30 amp for 800 watt motors. This controller is a superior upgrade heavy duty device that has 6 commonly used connectors: Power Source, Motor, Brake Lever, Throttle (Derailler), Switch On/Off, and Power Indicator. Charger should be wired directly to the battery for most versions of this universal control box (use harness of old control box if using for replacement). Some versions of this control box may have a brake light, too. Simple standard installation using new controller's clearly marked and identifed connector plugs, or use controller connector set sold separately below to match your wiring harness connectors, or use existing old controller connectors by detaching the blades in the new connectors and inserting in the old molex connectors as necessary (small screwdriver or jewelers screwdriver required to remove blades).
Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect. Typical Diminsions: 3.5"L X 2.5"W X 1.5"H. All aspects of this control box are subject to change as available for universal use.
2 LEFT
Typical Wiring Connection

36V800YK31-C CONTROL BOX $19.95
with free USA shipping

spacer

Razor 36 Volt Controller module and Throttle Kit $59.95

with free USA shipping

Razor 36 Volt Controller module and Throttle Kit
Razor Electrical Kit for all versions of the MX500 & MX650. Includes throttle and control module and must be used together.

Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT

Razor 36 Volt Controller module and Throttle Kit $59.95
with free USA shipping

spacer

48 Volt Digital Heavy Duty Controller for up to 1200 Watt Motors. $74.95
with free USA shipping

YK42-4 - A great buy on this heavy duty control box rated 40 amp for 1500 watt electric 48 volt motors. 6"L X 3.5"W X 2"H. Just connect to motor, 3 wire connector hall effect throttle, and then 48 volt battery set for high quality and endurance you need.
Tested prior to packaging. No returns or exchanges due to the sensitive nature of this device (Buy at your own risk). Installation is suggested by a competent person using care to avoid misconnection and static electricity that will cause a defect.
1 LEFT
Wiring Connection

YK42-4 CONTROL BOX $74.95
with free USA shipping

spacer
2 Connector set for scooters
3 Connector
4 Connector
6 Connector
Motor or Battery Connector

SIX CONNECTOR SET FOR SCOOTERS - $17.95
with free USA shipping

Universal set of Scooter Connectors. Six male and female standard white Molex connector sets: two, three, four, six pins, 2 pin motor, and battery 2 pin connector sets. Makes installation of control boxes easier. Blades included. 3 SETS LEFT

SIX MOLEX CONNECTOR SET FOR SCOOTERS $17.95
with free USA shipping

2 Modular Connector set for scooters
FIVE MODULAR CONNECTOR SET FOR SCOOTERS - $14.95
with free USA shipping

Modular black mini set of Scooter Connectors. Five male and female standard Modular connector sets: two, three, four, five, and six pin connectors in this set. Makes installation of control boxes easier especially when using control boxs with white molex connectors as replacements. Blades included.
1 SET LEFT


FIVE MODULAR CONNECTOR SET FOR SCOOTERS $14.95
with free USA shipping
